A case study using the GORE® VIABAHN® Endoprosthesis with Heparin Bioactive Surface*,†

Challenge

  • 48-year-old male with end stage renal disease secondary to hypertensive nephrosclerosis and diabetic nephropathy
    • Relevant patient history:
      • Diabetes mellitus, chronic anemia, paroxysmal atrial fibrillation, coronary artery disease, hypertension, hyperlipidemia, COPD, tobacco use
      • Left brachioaxillary arteriovenous (AV) graft 4-7 mm implanted June 26, 2018. Two revisions, April 8, 2019 and August 23, 2019, each with an BD® ULTRASCORE® Focused Forced PTA Balloon followed by a 9 mm x 40 mm BD® LUTONIX® 035 Drug Coated Balloon PTA Catheter
  • Presented after two failed percutaneous transluminal angioplasty (PTA) revisions of the venous anastomosis of an arteriovenous graft, preventing successful hemodialysis.
Fistulography with recurrent stenosis noted at venous outflow anastomosis.

Image: Fistulography with recurrent stenosis noted at venous outflow anastomosis.

Images courtesy of Nicolas Mouawad, M.D. Used with permission.

Procedure

  • Planned definitive treatment with outflow stenting
  • Advanced the TERUMO® RADIFOCUS® GLIDEWIRE® ADVANTAGE .035" Guidewire across the target lesion (Left image)
  • Pre-dilated the stenotic lesion with an 8 x 40 mm MEDTRONIC EVERCROSS PTA BALLOON Catheter (Left image)
  • Placed a 9 mm x 5 cm .035" guidewire compatible low profile VIABAHN® Device (Right image)
  • Post-dilated with a 9 x 40 mm MEDTRONIC EVERCROSS PTA BALLOON Catheter PTA (Right image)
Combined angiogram

Left image: Lesion preparation with pre-dilatation using 8 x 40 mm noncompliant balloon.

Right image: Post-PTA outflow fistulography in preparation for VIABAHN® Device deployment.

Images courtesy of Nicolas Mouawad, M.D. Used with permission.

Result

Excellent outflow without any recurrent complication at eight months post-intervention.

Fistulogram following stent deployment with complete resolution of stenosis

Image: Fistulogram following stent deployment with complete resolution of stenosis.

Images courtesy of Nicolas Mouawad, M.D. Used with permission.

Case takeaways

The outcome of this case aligns to the well-established findings that the VIABAHN® Device offers value through reduced frequency of repeat interventions as compared to PTA.1

Enhanced access and visibility in challenging anatomies is enabled by a low profile and radiopaque markers on the proximal and distal ends of the device.

At eight months post-placement, the VIABAHN® Device has exceeded results achieved with prior PTA treatments; primary patency of the stent graft is maintained, with no circuit reinterventions post VIABAHN® Device placement to date.

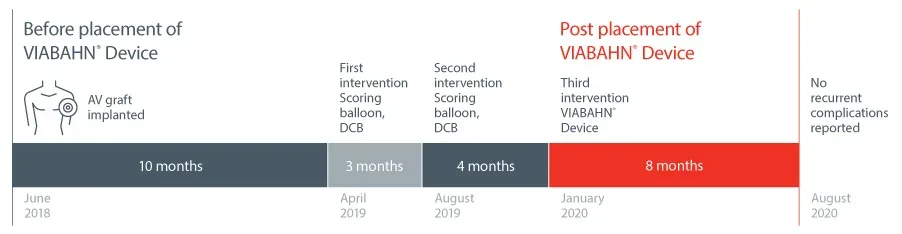

Diagram of GORE VIABAHN Endoprosthesis results
See additional clinical information

Related case studies

* As used by Gore, Heparin Bioactive Surface refers to Gore’s proprietary CBAS Heparin Surface.

† Also referred to as the GORE® VIABAHN® Endoprosthesis with PROPATEN Bioactive Surface in some regions.

1. Mohr BA, Sheen AL, Roy-Chaudhury P, Schultz SR, Aruny JE; REVISE Investigators. Clinical and economic benefits of stent grafts in dysfunctional and thrombosed hemodialysis access graft circuits in the REVISE Randomized Trial. Journal of Vascular & Interventional Radiology 2019;30(2):203-211.e4. https://www.jvir.org/article/S1051-0443(18)31772-X/fulltext
