Restoring flow to a patient with stenosis at the aortoiliac bifurcation
Restoring flow in a patient with severe claudication and focal iliac calcification

Restoring flow to a patient with stenosis at the aortoiliac bifurcation

GORE® VIABAHN® VBX Balloon Expandable Endoprosthesis

Case submitted by Masahiko Fujihara, M.D.

Challenge

• 78-year-old female with severe intermittent claudication (Rutherford 3)
• Bilateral common iliac artery stenosis (TASC II D lesions) originating at the aortic bifurcation
• Relevant patient history:
  • Hypertension, hyperlipidemia, prior bilateral carotid artery stenosis

Calcified nodule at the aortoiliac bifurcation

Procedure:

• Gained bilateral access in the common femoral arteries
• Crossed lesions on both the left and right with .014" guidewires
• Dilated with a 2 mm diameter percutaneous transluminal angioplasty (PTA) balloon to allow for intravascular ultrasound examination
• Pre-dilation with 5 mm balloons in kissing balloon technique
• Exchanged to .035" stiff guidewires and 7 Fr long sheaths
• Deployed two 7 mm x 79 mm GORE® VIABAHN® VBX Balloon Expandable Devices (VBX Stent Graft) using kissing stent technique
• Due to significant calcification, post-dilated first with two 8 mm x 40 mm PTA balloons
• Sequential post-dilation of VBX Stent Grafts proximally with a 10 mm x 20 mm PTA balloon followed by final post-dilation with kissing 8 mm x 40 mm PTA balloons
• Confirmed successful result using intravascular ultrasound and angiography

Result:

• The patient was discharged with a full ankle-brachial index recovery and no remaining symptoms.

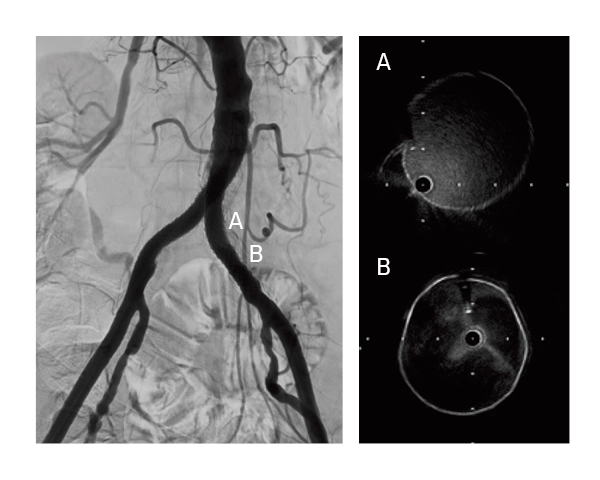

Fully expanded GORE® VIABAHN® VBX Balloon Expandable Endoprosthesis across the calcified segment

Case Takeaways

The VBX Stent Graft provides durable outcomes in highly calcified lesions. The performance of the VBX Stent Graft allows device customization to the anatomy (6-11 mm for 7 mm x 79 mm device) and provides radial strength to achieve luminal gain while potentially mitigating the risk of rupture and perforation.

Restoring flow in a patient with severe claudication and focal iliac calcification

GORE® VIABAHN® VBX Balloon Expandable Endoprosthesis

Case submitted by Chris Metzger, M.D.
Kingsport, Tennessee

Challenge:

• A 57-year-old male with severe intermittent claudication (Rutherford 3).
• TASC II B lesion in the right common iliac artery (CIA) and focal iliac calcification.
• Relevant patient history:
  • Current smoker with hypertension, hyperlipidemia and previous diagnosis of peripheral artery disease in the right limb that was treated with medication.
  • Baseline ankle-brachial index (ABI) = 0.76.

Focal calcification in the right CIA

Procedure:

• Started with bilateral access, identified focal lesion in the distal right CIA that was ~80% stenosed.
• Angiography showed robust multi-vessel distal runoff down to the foot.
• Pre-dilated with a 5 × 20 mm ABBOTT® ARMADA PTA balloon, observed presence of calcification nodule that prevented full dilatation of the percutaneous transluminal angioplasty (PTA) balloon.
• Delivered and deployed an 8 mm × 39 mm GORE® VIABAHN® VBX Balloon Expandable Endoprosthesis (VBX Stent Graft).
• Slight residual stenosis observed following VBX Stent Graft deployment.
• Post-dilatation performed using a 7 × 20 mm ABBOTT® ARMADA PTA balloon inflated to 14 atm (near rated burst pressure).
• Final angiogram showed complete restoration of patency in the right CIA with good distal outflow.

Result:

At discharge, the patient’s ABI was 1.0. At three-year follow-up, ABI was measured at 0.99 and patient was Rutherford 0 with no report of pain/discomfort or problems with mobility.

Complete restoration of patency

Case takeaways:

Calcified lesions present challenges in endovascular treatment of aortoiliac occlusive disease, including an increased risk of rupture. The VBX Stent Graft provides a barrier that mitigates concerns about neointimal hyperplasia and provides high radial strength to restore patency in even the most calcified lesions.¹
