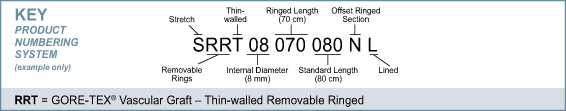

Catalogue Numbers for GORE-TEX® STRETCH Vascular Graft For Vascular Access
Standard-walled | ||
|---|---|---|
| Catalogue Number | Internal Diameter (mm) | Standard Length (cm) |
| S0601 | 6 | 10 |
| S0603 | 6 | 30 |
| S0604 | 6 | 40 |
| S0701 | 7 | 10 |
| S0801 | 8 | 10 |
| S46045* | 4-6 | 45 |
| S47030* | 4-7 | 30 |
| S47040* | 4-7 | 40 |
| S47045* | 4-7 | 45 |
| S47055* | 4-7 | 70 |
| S47070* | 4-7 | 70 |
*Tapered
Interring | |||
|---|---|---|---|
| Catalogue Number | Internal Diameter (mm) | Radial Supported Length (cm) | Standard Length (cm) |
| IRS06040L | 6 | 40 | 40 |
| IRS06005045L | 6 | 5 | 45 |
| IRS06010020L | 6 | 10 | 20 |
| IRS46045L* | 4-6 | 38 | 45 |
| IRS47045L* | 4-7 | 38 | 45 |
*Tapered
Standard-walled Ringed | |||
|---|---|---|---|
| Catalogue Number | Internal Diameter (mm) | Ringed Section Length (cm) | Standard Length (cm) |
| SRD06005045L | 6 | 5 | 45 |
Thin-walled Removable Ringed | |||
|---|---|---|---|
| Catalogue Number | Internal Diameter (mm) | Ringed Section Length (cm) | Standard Length (cm) |
| SRRT06010010L | 6 | 10 | 10 |
| SRRT06030040L | 6 | 30 | 40 |
| SRRT06040050L | 6 | 40 | 50 |
Sizing, availability and pricing varies by country.
Please check with your Gore representative for availability.
Refer to Instructions for Use at eifu.goremedical.com for a complete description of all applicable indications, warnings, precautions and contraindications for the markets where this product is available. RXOnly
INDICATIONS FOR USE IN THE U.S.: GORE® Vascular Graft is intended for use as vascular prostheses for replacement or bypass of diseased vessels in patients suffering occlusive or aneurysmal diseases, in trauma patients requiring vascular replacement, for dialysis access, or for other vascular procedures. The GORE-TEX® STRETCH Vascular Graft FEP Removable Ring Axillobifemoral is intended for use in bypass procedures which reestablish blood supply to the lower extremities.
CONTRAINDICATIONS: DO NOT use GORE® Vascular Graft as a patch. If cut and used as a patch, GORE® Vascular Graft may lack adequate transverse strength. For cardiovascular procedures requiring patch materials, use the appropriate GORE‑TEX® Cardiovascular Patch.
DO NOT use any of the below configurations for coronary artery bypass or cerebral reconstruction procedures:
- GORE‑TEX® Vascular Graft FEP Ring,
- GORE‑TEX® STRETCH Vascular Graft FEP Ring,
- GORE‑TEX® Vascular Graft FEP Removable Ring,
- GORE‑TEX® STRETCH Vascular Graft FEP Removable Ring, or the
- GORE® INTERING® Vascular Graft.
